reportBlock & reportItemBlock

reportBlock

1. Properties

Block Property	Definition	Example Input	Status
type	Type of workflow logic	reportBlock(Can't be changed).
tag	Unique name for the logic block.	report.
permissions	Which entity has rights to interact at this part of the workflow.	Standard Registry.
defaultActive	Shows whether this block is active at this time and whether it needs to be shown.	Checked or unchecked.

2. Impacts Section

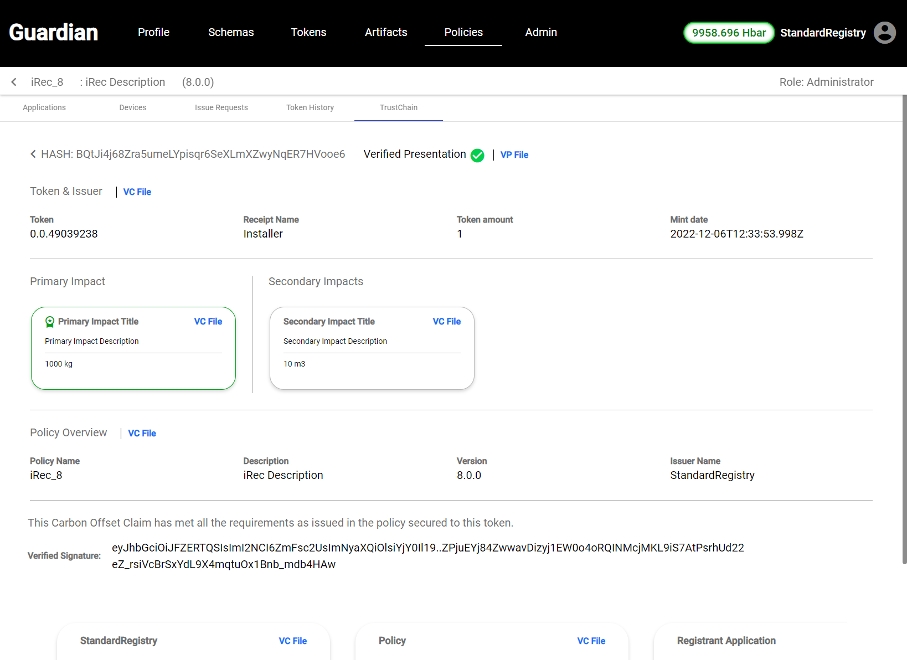

We have added new Impacts Section to display Primary/Secondary Impacts token details in Trustchain:

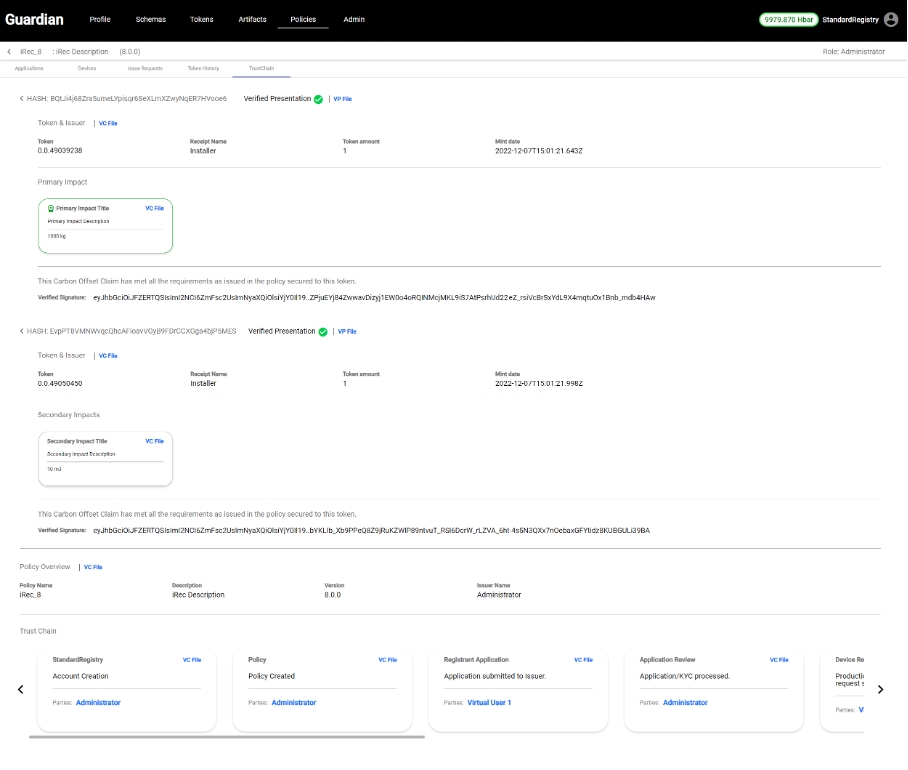

In the case when multiple linked mint blocks are used then the system displays all linked VPs as shown below:

2.1 Data Format:

Ingress Document has following sections:

Document Type	Description
vpDocument	VP document found based on its hash
vcDocument	VC document found based on its hash
impacts (new)	array of Impacts (VCs) if exist
mintDocument	VC document describing the mint
policyDocument	VC document describing the policy
policyCreatorDocument	VC document describing the Standard Registry
documents	collection of VC documents retrieved from the reportItemBlock
additionalDocuments	array of VPs linked with the selected document

3. Token Transfer Section

Token transfer, which shows how much tokens is already transferred (will display only when transfer is needed)

Events

Property Name	Name in JSON	Property Value	Value in JSON	Description
Event Type	-	Input Event Output Event	-	Type of the event - determines whether this is ingress or egress event for the current block.
Source	"source"	Block tag(string)	"block_tag"	The block which initiates the event.
Target	"target"	Block tag(string)	"block_tag"	The block which receives the event.
Output Event	"output"	Event name(string)	"event_name"	Action or issue that caused the event.
Input Event	"input"	Event name(string)	"event_name"	Action which will be triggered by the event.
Event Actor	"actor"	Event Initiator Document Owner Document Issuer	"" "owner" "issuer"	Allows to transfer control of the block (execution context) to another user. Empty field leaves control at the Event Initiator.
Disabled	"disabled"	True/False	true/false	Allows to disable the event without deleting it.

To know more information about events, please look at Events.

API Parameters

GET /policies/{policyId}/blocks/{uuid}

Path Parameters

Name	Type	Description
policyId*	String	Policy ID
uuid*	String	Block UUID

200: OK Successful Operation

{
  "hash": "BV4VxNEGvBjodqZ6KWCoV6r4xks4LYSGu8mjWyXLLX52",
  "data": {
    "vpDocument": {
      "type": "VP",
      "title": "Verifiable Presentation",
      "tag": "mint_token",
      "hash": "BV4VxNEGvBjodqZ6KWCoV6r4xks4LYSGu8mjWyXLLX52",
      "issuer": "did:hedera:testnet:7Q9aPi8rEhceMGMqviCdya9APf515YVbtiyjHrHYPh5N_0.0.3075949",
      "username": "Virtual User 1",
      "document": {
        "_id": "63da2203db84efbb04da45a7",
        "dryRunId": "63da04e19670adb07f82b092",
        "dryRunClass": "VpDocumentCollection",
        "owner": "did:hedera:testnet:7Q9aPi8rEhceMGMqviCdya9APf515YVbtiyjHrHYPh5N_0.0.3075949",
        "hash": "BV4VxNEGvBjodqZ6KWCoV6r4xks4LYSGu8mjWyXLLX52",
        "document": {
          "id": "urn:uuid:0bb9966d-bbce-4e7d-a943-21c7d6283adc",
          "type": [
            "VerifiablePresentation"
          ],
          "@context": [
            "https://www.w3.org/2018/credentials/v1"
          ],
          "verifiableCredential": [
            {
              "id": "urn:uuid:7aeb978a-01bf-4ceb-be52-33997832e32d",
              "type": [
                "VerifiableCredential"
              ],
              "issuer": "did:hedera:testnet:9jShvNUsztLFbvEK442VPfkccLYW3F2oU3e6rCHzr7FT_0.0.3075949",
              "issuanceDate": "2023-02-01T08:25:38.804Z",
              "@context": [
                "https://www.w3.org/2018/credentials/v1"
              ],
              "credentialSubject": [
                {
                  "field0": "did:hedera:testnet:7Q9aPi8rEhceMGMqviCdya9APf515YVbtiyjHrHYPh5N_0.0.3075949",
                  "field1": "did:hedera:testnet:EHXwuE486eSD4yGXr6qTNLstmb8H1B2Jn4kx3PeWZzjv_0.0.1675232535045",
                  "field2": {
                    "field0": "Organization Name",
                    "type": "dee7e78b-44b8-4bb0-8be0-3a86bde752b2",
                    "@context": []
                  },
                  "field3": {
                    "field0": "device1",
                    "type": "b61a05c6-bb1a-4d7e-9299-c0932d8c0306",
                    "@context": []
                  },
                  "field6": "2023-02-01",
                  "field7": 1,
                  "field8": "2023-02-01",
                  "field17": "StandardRegistry",
                  "field18": "0.0.3075944",
                  "policyId": "63da04e19670adb07f82b092",
                  "ref":
"did:hedera:testnet:EHXwuE486eSD4yGXr6qTNLstmb8H1B2Jn4kx3PeWZzjv_0.0.1675232535045",
                  "@context": [
                    "schema#80b8a663-8dec-411f-83fd-6e4cb7170427"
                  ],
                  "id": "urn:uuid:bdc30a12-443f-43a1-b1ff-05fdb4d39017",
                  "type": "80b8a663-8dec-411f-83fd-6e4cb7170427"
                }
              ],
              "proof": {
                "type": "Ed25519Signature2018",
                "created": "2023-02-01T08:25:38Z",
                "verificationMethod": "did:hedera:testnet:9jShvNUsztLFbvEK442VPfkccLYW3F2oU3e6rCHzr7FT_0.0.3075949#did-root-key",
                "proofPurpose": "assertionMethod",
                "jws": "eyJhbGciOiJFZERTQSIsImI2NCI6ZmFsc2UsImNyaXQiOlsiYjY0Il19..hcXXdjwaicZzXlUraPIaQqEpMkt9tRYJWAEMX8j8ipXUcrh1dgTDeHxHmVfxOrpOaxqgoo2Sf2VltQi8FRjvBA"
              }
            },
            {
              "id": "urn:uuid:c6ae4294-bd77-43ec-9389-f0c1a9bbc830",
              "type": [
                "VerifiableCredential"
              ],
              "issuer": "did:hedera:testnet:9jShvNUsztLFbvEK442VPfkccLYW3F2oU3e6rCHzr7FT_0.0.3075949",
              "issuanceDate": "2023-02-01T08:25:38.920Z",
              "@context": [
                "https://www.w3.org/2018/credentials/v1"
              ],
              "credentialSubject": [
                {
                  "date": "2023-02-01T08:25:38.917Z",
                  "tokenId": "0.0.3120996",
                  "amount": "1",
                  "@context": [
                    "ipfs://bafkreib67gunqam5jcv6xx3ioapfzyrnvte5wvpmcq56emso5acckercae"
                  ],
                  "type": "MintToken"
                }
              ],
              "proof": {
                "type": "Ed25519Signature2018",
                "created": "2023-02-01T08:25:38Z",
                "verificationMethod":
.....

POST /policies/{policyId}/blocks/{uuid}

Path Parameters

Name	Type	Description
policyId*	String	Policy ID
uuid*	String	Block UUID

Request Body

Name	Type	Description
filterValue*	String	VP Hash

reportItemBlock

Properties

Block Property	Definition	Example Input
Title	Title of the element	Report
Description	Description of the element	Reporting
Visibility	Visibility of the element. False if there is a need to build a chain of elements which must not be shown	False
Multiple	which allows store multiple documents in Report Item	True
Filters	Array of filters for the VC for this element	"filters": [ { "field": "document.id", "value": "actionId", "typeValue": "variable", "type": "equal" }, { "typeValue": "value", "field": "type", "type": "equal", "value": "report" } ]
Dynamic Filters	We can set “Field Path” (in current Report Item Document[s]), “Next Item Field Path” and “Type” (Filter Type) to filter documents in Report Items dynamically directly in trust chain.	Type
Variables	List of common variables. It gets filled in in the process of the transition from one reportItemBlock to the next	"variables": [ { "value":"document.credentialSubject.0.ref", "name": "projectId" } ]

A new variable projectId will be created which would be assigned the value from document.credentialSubject.0.ref.
